Endgame Gear XM1 RGB

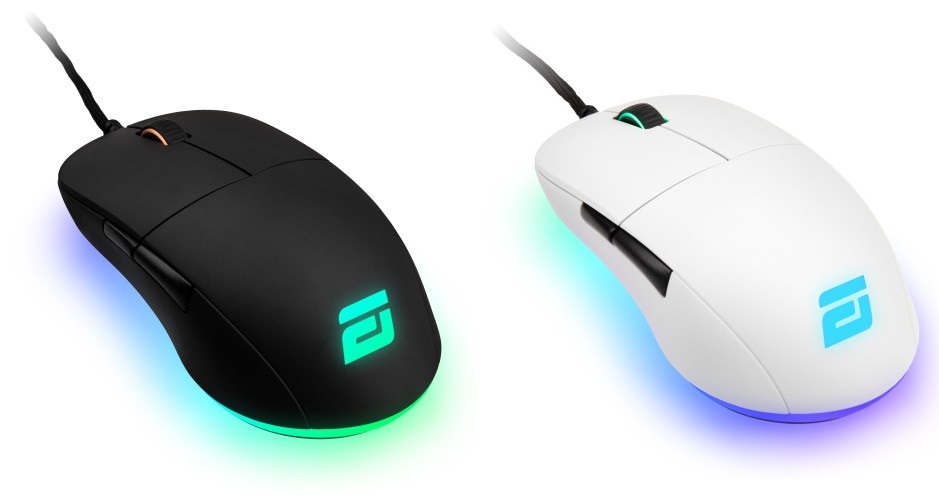

The high-quality XM1 RGB gaming mouse is aiming at ambitious gamers with a preference for style and design. It is the result of consistent development and innovation as well as numerous in-house tests at Endgame Gear. The manufacturer took the feedback from the community in particular to heart and gave the XM1 RGB selected mechanical Kailh GM 4.0 buttons, large and easy-to-slide mouse skates and RGB lighting.

• Selected, mechanical Kailh GM 4.0 buttons for the ideal click feeling

• Elegant RGB lighting with three zones

• Large, noiseless and low-friction PTFE glides for maximum precision

• Patented analog technology with signal processing under 1 ms

• Pixart PMW3389 flagship sensor for low / mid / high-sense gamers

• Five configurable buttons + onboard memory

• Resource-saving software for CPI, button remapping and RGB

• Ergonomic right-handed mouse for Claw Grip, Palm Grip & Finger Grip

The Endgame Gear XM1 RGB has a total of five mouse buttons and a dedicated profile switch. The mechanical and selected Kailh GM 4.0 switches of the two main buttons are an exclusive custom-made product for the Endgame Gear XM1 RGB. They are designed for extreme loads and 60 million clicks. Long durability and perfect feedback with every click.

Technical Details

• Dimensions (W x H x D): 65.81 x 38.26 x 122.14 mm

• Weight: 82 g

• Material: Plastic (Chassis) / PTFE (Glides) / Dry Grip coating (Surface)

• Sensor: Pixart PMW3389 (optical)

• Microcontroller: 32bit STM ARM Cortex-M0 MCU

• Resolution: 50 - 16.000 CPI (adjustable in 50 CPI increments)

• Polling-Rate: 250, 500, 1.000 Hz (adjustable)

• Acceleration: 50 G

• Max Speed: 450 IPS

• Lift-Off Distance: 2mm (standard) or 3mm (adjustable via software)

• Programmable buttons: 5 (2x top, 2x side, 1x wheel)

• Connection: USB 2.0 Type A

• Main buttons (right/left): Kailh GM 4.0-Switches (mechanical, selected)

• Clicking force: 60 g +-5g

• Operating life: 60 Million clicks

• Length of cable: 1,85 m
